Conditionals in practice: Part 2: Massage {

AND, OR, NOT, got it. But what could we do with them?

In this module

Preparation
Our creature is back
Massage!

Preparation

Download the Creature Loves Massage
Unzip it
Move the folder into your repository
Open the folder in VS Code
Commit and push the changes

Our creature is back

Currently our creature responds in different ways to the mouse and keys, but we can be a bit more sophisticated now with logic operators. So let’s delete the stuff in its checkInput() and change it up.

Massage!

Let’s change what makes the creature happy: massage.

How could we think of massage in the context of the mouse? What if we consider it massage if two things are true:

The cursor is overlapping the creature AND
The cursor is moving

So we want to be able to write something like:

if (mouseIsOverlapping && mouseIsMoving) {
  // The cursor is overlapping the creature AND it's moving
  // So the creature is happy!
  creature.fill = creature.fills.happy;
}

These would be our two conditions. But for that to work we need the variables mouseIsOverlapping and mouseIsMoving to have the right true or false values in them…. so something like:

const mouseIsOverlapping = ?;
const mouseIsMoving = ?;
if (mouseIsOverlapping && mouseIsMoving) {
  // The cursor is overlapping the creature AND it's moving
  // So the creature is happy!
  creature.fill = creature.fills.happy;
}

(We might as well use const here because we’re not going to change these variables later.)

`mouseIsOverlapping`

So, how do we write a condition that checks if the mouse cursor overlaps a circle (the creature)?

To check if a pair of (x,y) coordinates are inside a circle we can rely on a neat trick:

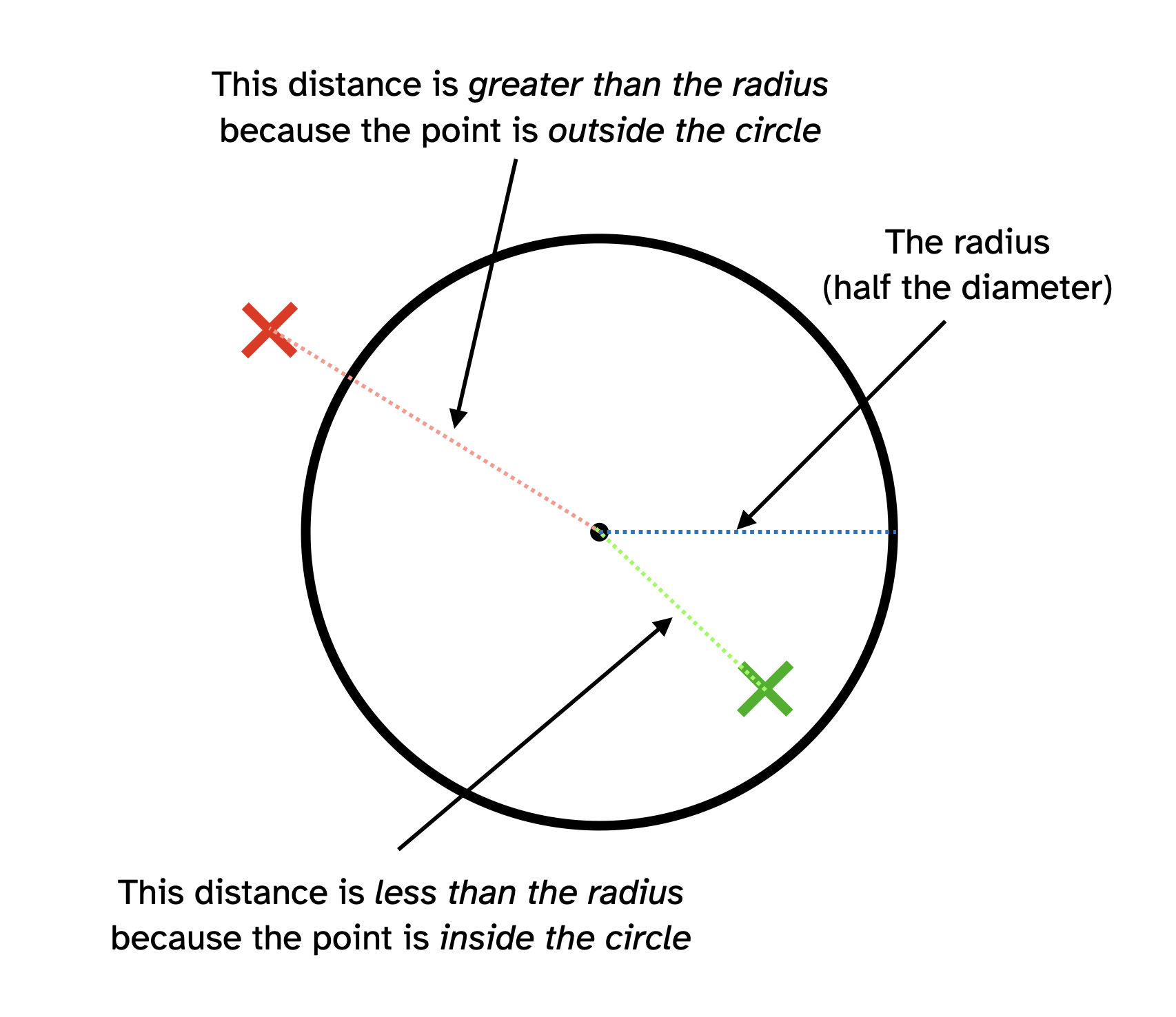

The coordinates (x,y) are inside a specific circle if their *distance from the centre of the circle* is less than its radius. As in this wonderful diagram:

Diagram of how the distance from the centre of a circle tells us whether a point is inside or outside a circle

Better yet, there is a function in p5 called dist() that we can use to get the distance in pixels between two (x,y) coordinates!

📖 Read the dist() documentation. 📖

With that we can actually express our condition in math! Like this!

// Calculate the distance between the cursor and the creature
// and put it into a "distance" variable (using const again since
// we won't change this again later!)
const distance = dist(mouseX, mouseY, creature.x, creature.y);
// Calculate whether the mouse overlaps the creature by checking whether
// the distance is less than its radius! (Half its diameter)
const mouseIsOverlapping = (distance < creature.size/2);

When we do this mouseIsOverlapping will be true is the mouse is inside the creature’s circle, and false if it isn’t!

`mouseIsMoving`

How can we tell if the mouse is moving? Fortunately p5 gives us two variables that help us out here: movedX and movedY store how many pixels the mouse moved since the last frame on the x- and y-axes respectively.

📖 Read the movedX and movedY documentation. 📖

So, if either of those variables are not 0 then the mouse moved right?

And that is maths, so we can write the code!

// Check if EITHER movedX OR movedY are NOT equal to zero
// and store the result in our mouseIsMoving variable (another
// const because we don't want to change it later)
const mouseIsMoving = (movedX !== 0 || movedY !== 0);

That gives us both of our conditions, so we can finally check for massage

Massage is go

We can replace our creature’s checkInput() with our new idea!

/**
 * Creature is happy if being massaged and otherwise bored
 */
function checkInput() {
    // Calculate the distance between the cursor and the creature
    // and put it into a "distance" variable (using const again since
    // we won't change this again later!)
    const distance = dist(mouseX, mouseY, creature.x, creature.y);
    // Calculate whether the mouse overlaps the creature by checking whether
    // the distance is less than its radius! (Half its diameter)
    const mouseIsOverlapping = (distance < creature.size/2);
    // Check if EITHER movedX OR movedY are NOT equal to zero
    // and store the result in our mouseIsMoving variable (another
    // const because we don't want to change it later)
    const mouseIsMoving = (movedX !== 0 || movedY !== 0);
    // Check if the mouse if over the creature and moving
    if (mouseIsOverlapping && mouseIsMoving) {
        // The cursor is overlapping the creature AND it's moving
        // So the creature is happy! Massage!
        creature.fill = creature.fills.happy;
    }
    else {
        // Otherwise the creature is bored
        creature.fill = creature.fills.bored;
    }
}

Phew! Now we have a creature that’s happy if we’re giving it a little mouse massage, and otherwise it’s just SO BORED.

It’s feeling more and more like a real thing.

Finishing up

Commit and push the changes you have made in this session with an appropriate commit message

Summary

Most of the time when we’re thinking about situations we care about, we care about combinations of events and ideas. Logic operators help us to combine conditions and so they allow us to express more complex (and naturalistic!) ideas about the world of our program.

}

Complete creature code

// Our creature
const creature = {
  // Position
  x: 200,
  y: 200,
  // Size
  size: 200,
  // Fill
  fill: "#000000", // Starts out bored
  // Possible fills for the creature that show its mood
  // We'll need these when we start changing its colour
  // and its nice to keep them along with all the other info
  // about the creature
  fills: {
    bored: "#000000", // Black
    happy: "#33cc33", // Green
    angry: "#cc3333", // Red
    dead: "#777777" // Grey
  }
};

/**
 * Creates the canvas
 */
function setup() {
  createCanvas(400, 400);
}

/**
 * Fills the background, displays the creature
 */
function draw() {
  background(255, 200, 127);

  checkInput();
  drawCreature();
}


/**
 * Creature is happy if being massaged and otherwise bored
 */
/**
 * Creature is happy if being massaged and otherwise bored
 */
function checkInput() {
    // Calculate the distance between the cursor and the creature
    // and put it into a "distance" variable (using const again since
    // we won't change this again later!)
    const distance = dist(mouseX, mouseY, creature.x, creature.y);
    // Calculate whether the mouse overlaps the creature by checking whether
    // the distance is less than its radius! (Half its diameter)
    const mouseIsOverlapping = (distance < creature.size/2);
    // Check if EITHER movedX OR movedY are NOT equal to zero
    // and store the result in our mouseIsMoving variable (another
    // const because we don't want to change it later)
    const mouseIsMoving = (movedX !== 0 || movedY !== 0);
    // Check if the mouse if over the creature and moving
    if (mouseIsOverlapping && mouseIsMoving) {
        // The cursor is overlapping the creature AND it's moving
        // So the creature is happy! Massage!
        creature.fill = creature.fills.happy;
    }
    else {
        // Otherwise the creature is bored
        creature.fill = creature.fills.bored;
    }
}

/**
 * Handles the creature becoming happy
 */
function creatureHappy() {
    creature.fill = creature.fills.happy;
}

/**
 * Draws the creature
 */
function drawCreature() {
  push();
  noStroke();
  // Use the creature's fill
  fill(creature.fill);
  // Display the creature at its position and size
  ellipse(creature.x, creature.y, creature.size);
  pop();
}
